Your Plan Do Check Act Board deliver bitesize visibility to this valuable Continuous Improvement process. In other words, this type of board makes your Plan Do Check Act process visual, accessible and successful.
Most importantly, your board visually supports Continuous Improvement with incremental and achievable steps. Furthermore, it visually engages your team in the process. In addition, it creates a space where this process routinely happens. Similarly, it makes an area where your team can collaborate and record results.
Plan Do Check Act Board – PLAN
Above all, the ‘plan’ stage achieves the following:
Firstly, identify waste and analyse cause. Secondly, collect relevant data. Subsequently, plan what to do. In addition, define responsibilities – who is taking the action.
Plan Do Check Act Board – DO
So, the ‘do’ stage is where you implement your plan. Next, measure results. Do this by defining clear KPIs (key performance indicators). Subsequently, adjust your actions if necessary.
Plan Do Check Act Board – CHECK
Above all, the ‘check’ phase is about monitoring results. Most importantly, record results and put them in a visual form. In other words, use your Plan Do Check Act Board to showcase both KPIs and results.
Plan Do Check Act Board – ACT
Standardise the improved process. In other words, support the new standard with documentation. In addition, visual representation. Above all, this embeds the improved process. Furthermore, the subsequent improvements are then based on this standard.
Visual Plan Do Check Act Board
Use your Plan Do Check Act Board to make each stage visual. Likewise, accessible for all the team.
Here are some ideas for what to include to make the Plan Do Check Act process work. Likewise, to make it highly visual and accessible:
- Plan Do Check Act status indicator dials to engage your team in each stage of the process. Likewise to show the process in real time.
- Define not only who is taking action but when. In other words, show when the next meeting is happening on your board.
- Deliver a board that supports an incremental and achievable approach. For instance, with small areas for succinct and manageable actions.

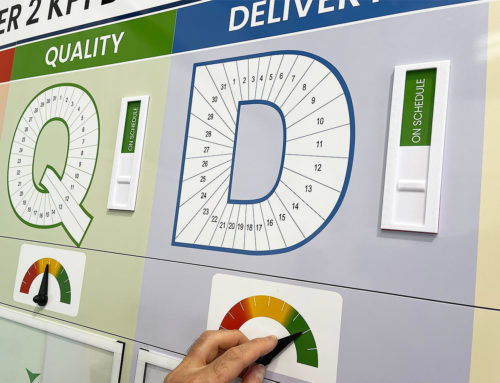

- Use your board to showcase KPIs. Likewise, to make key results visual. Make them easy to update in real time. Likewise, give a visual snapshot of progress. For example, by assigning a status indicator per KPI.
- Support your improvement process with documentation. Therefore, add document holders to your Plan Do Check Act Board.
- Support your improved process with visual representation. As a result, show what you need on your board.
- Use your board to mark when a process is complete. That is to say, celebrate the wins! In addition, consider defining what that value means. So, for instance, show how much money or time is saved.
Visually support your team’s Continuous Improvement actions.
Make status instantly visible.
Show what you need on your Continuous Improvement Board.
Add documentation to your board.
Arm your team with accessible and visual points of reference.
Make status instantly clear.
